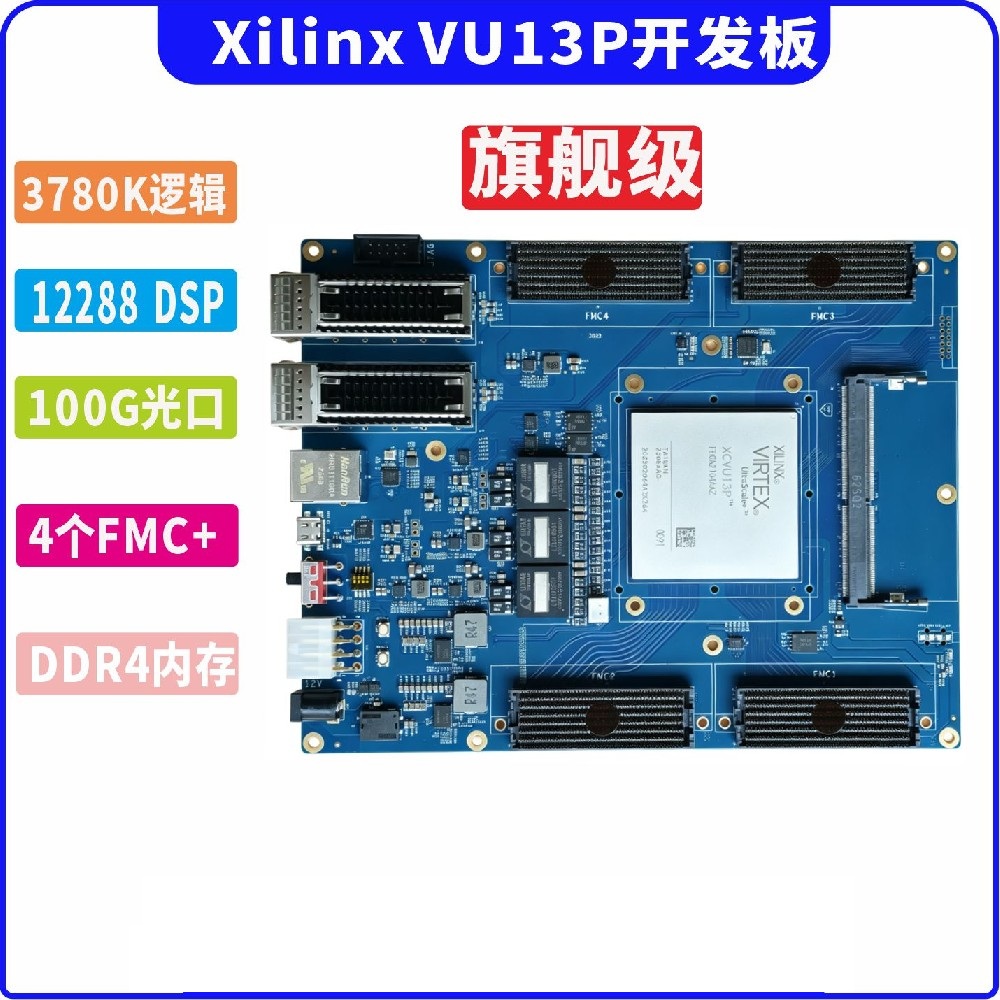

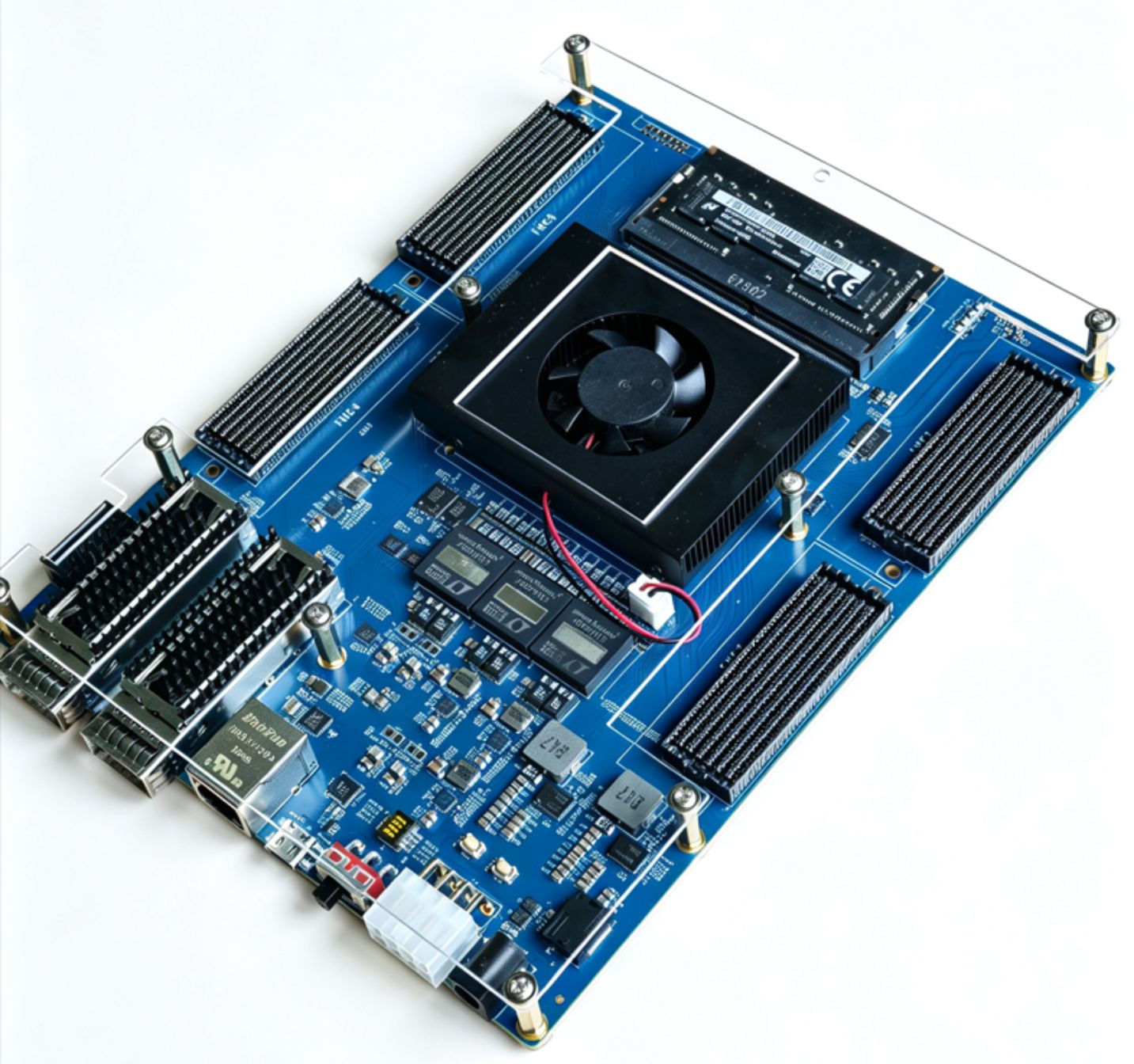

AMD Xilinx XCVU13F Virtex UltraScale+ FMC+ FPGA PCIE сверхвысокопроизводительная плата разработки
VU13F — это промышленная FPGA плата разработки на базе AMD Xilinx UltraScale+ XCVU13P-2FHGA2104I, предназначенная для высокоскоростных сетей, ускорения ИИ и прототипирования сложных алгоритмов. Обладает 3780K логическими ячейками, 12288 DSP блоками и 94.5Мб встроенной BRAM, предлагая богатые вычислительные ресурсы. Оснащен 4 интерфейсами расширения FMC+, 2 оптическими портами QSFP28-100G, 1 гигабитным Ethernet и памятью DDR4 SODIMM. Питание от 12В-20А ATX, с USB Type-C UART для отладки и компактным размером 205×160мм. Промышленный диапазон температур для коммуникационных исследований, обработки сигналов и научных исследований.
ct Highlights:
- Positioning: VU13F is a high-performance development board based on the AMD Xilinx UltraScale+ XCVU13P-2FHGA2104I industrial-grade FPGA, targeting high-speed signal processing, AI acceleration, 100G networking, big-data computing and algorithm prototyping.
- Compute Resources: The XCVU13P features 3780K logic cells, 1728K LUTs, 3456K flip-flops, 12288 DSP slices and up to 94.5Mb Block RAM, supporting large-scale parallel algorithms and complex logic development.
- Rich Interfaces: 4x FMC+ ports for flexible mezzanine expansion; 2x QSFP28 100G optical ports for ultra-high-speed networking; 1x GbE for general network connectivity.
- Storage & Debug: Supports DDR4 SODIMM modules (capacity selectable); USB Type-C provides UART debug serial console for debugging and logging.
- Hardware Specs: Industrial-grade temperature range; 12V/20A ATX power; compact 205x160mm form factor for lab integration.
- Applications: Ideal for 100G high-speed network development, signal processing, AI inference acceleration, protocol verification, research prototyping and high-performance algorithm validation.
Specifications:
| Board Model | VU13F |
| Main Chip | XCVU13P-2FHGA2104I |
| Temperature Grade | Industrial; -40°C~85°C |
| Logic Cells | 3780K |
| LUTs | 1728K |
| Flip-Flops | 3456K |
| DSP Silces | 12288 |
| Block RAM | 94.5Mb |
| DDR4 | SODIMM Slots |
| FMC+ | 4个 |
| GbE | 1个 |
| QSFP28 | 2x 100G |
| UART | 1x USB Type-C |
| Power | 12V 20A ATX |
| Dimensions | 205*160mm |
Applications:
- High-speed Networking Development：With 2x QSFP28 100G optical ports, develop 100G network protocols, packet processing, high-speed data transfer and communication protocol prototyping.
- Signal Processing：Massive DSP slices and logic resources for radar/RF signal processing and high-speed digital algorithm validation.
- AI & Algorithm Acceleration：Massively parallel compute resources support AI inference acceleration, complex algorithm hardware prototyping and big-data parallel computing.
- Research & Product Prototyping：Industrial-grade hardware with multiple FMC and expansion interfaces for university research and lab projects; connect various mezzanine cards to rapidly build custom hardware systems.
- High-performance Logic System R&D：Complex logic engineering development and debugging; integrable into end equipment for pre-research evaluation and solution validation.
